商品の詳細:
|
| 製品名: | MCBの配電箱 | 色: | 白い |
|---|---|---|---|
| 箱材料: | 1.0mmの粉は鋼鉄に塗った | カバー フレーム材料: | 1.2mmの粉は鋼鉄に塗った |
| 末端次元: | 6.4x12mm/8x12mm | 評価される電圧: | 400V+/-20% |
| 評価される頻度: | 50-60HZ | 方法次元: | 18mm |
| ハイライト: | Embedded Installation 20 way mcb box,high safety 20 way mcb box,20 way mcb panel box |
||

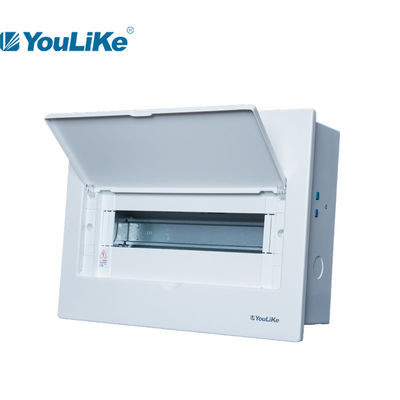

10-20WAY Service Embedded Installation Distribution Board Distribution Box MCB Box
Product Feature
1. Good quality bottom box, safe and reliable.
2. High quality copper bar, durable.
3. Straighten din rail and stabilize the support.
4. Stainless steel screws have high hardness and good mechanical properties.
5. The separate hinge is stable enough.
Technology
1. The new hinge structure adopts metal shaft core, which is stable, reliable and durable.
2. The special stainless steel shrapnel fixes the movable door in the ideal position to ensure that the force of opening and closing the movable door is moderate, the rotation is smooth and there is no abnormal noise.
3. The internal guide rail bracket is composed of all metal parts, with lifting and rotation adjustment function and pre suspension function.
4. The grounding screw is made of stainless steel, the stud is uncoated and the grounding is more sufficient
Company profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Specifications of MX series, Flush
| Model | Way | Cover size | Box size |
Terminals |
Knockouts | ||
| L*H*T (mm) | L*W*D*T(mm) | size(mm) | PE | N | one side qty | ||
| MXP-A 110 | 10way | 272*240*10(24.7) | 256*210*90*1.0 | 6.4*12 | 6 | 7 | 6 |
| MXP-A 112 | 12way | 308*240*10(24.7) | 292*210*90*1.0 | 6.4*12 | 8 | 9 | 7 |
| MXP-A 114 | 14way | 344*260*10(24.7) | 328*230*90*1.0 | 6.4*12 | 8 | 9 | 8 |
| MXP-A 116 | 16way | 380*260*10(24.7) | 364*230*90*1.0 | 6.4*12 | 10 | 11 | 9 |
| MXP-A 118 | 18way | 416*260*10(24.7) | 400*230*90*1.0 | 6.4*12 | 10 | 11 | 10 |
| MXP-A 120 | 20way | 452*260*10(24.7) | 436*230*90*1.0 | 6.4*12 | 12 | 13 | 11 |
| MXP-A 224 | 24way | 325*460*12(24.7) | 305*420*100*1.2 | 8*12 | 12 | 13 | 7 |
| MXP-A 232 | 32way | 397*460*12(24.7) | 377*420*100*1.2 | 8*12 | 15 | 15 | 9 |
| MXP-A 240 | 40way | 469*460*12(24.7) | 449*420*100*1.2 | 8*12 | 17 | 17 | 11 |

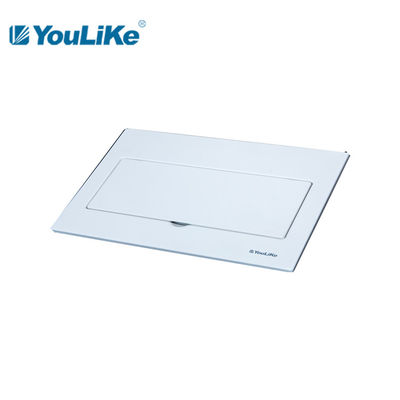

Product Details Demonstration
Application
MX series is used for indoor power distribution mainly for lighting control for residential and commercial buildings.

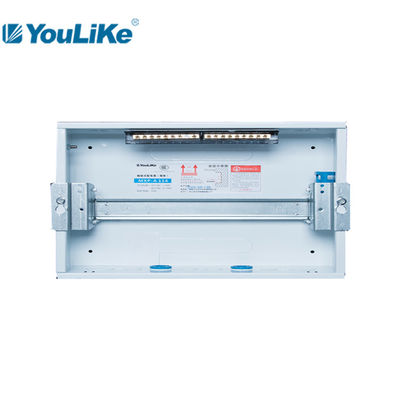

1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Copper terminals (1pcs earthing & 1pcs neutral) is with 60% composition.
3. Stainless earthing bolts with warning label, metal cover also equiped with earthing bolt.
4. Full metal cover manufactured by integral stretching formation, with extreme high tensile strength.

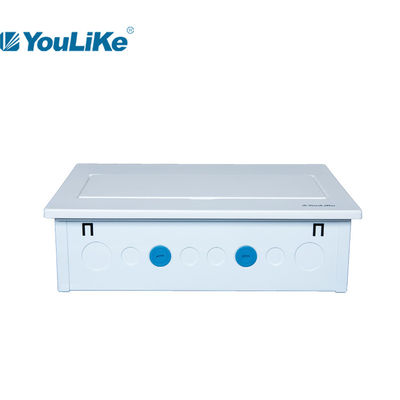

5. Box equiped with plastic knockouts as well as plastic wire clamps.
Packing
| Model | Carton size | Volume/ctn | Pcs/ctn | Calculated weight(kgs/ctn) | |
| mm | m³ | net weight | gross weight | ||
| MXP-A 110 | 550*260*300 | 0.0429 | 5 | 13.7 | 14.8 |
| MXP-A 112 | 550*260*340 | 0.0487 | 5 | 15.1 | 16.4 |
| MXP-A 114 | 550*280*375 | 0.0578 | 5 | 17 | 18.5 |
| MXP-A 116 | 550*280*410 | 0.0632 | 5 | 18.5 | 20 |
| MXP-A 118 | 440*280*235 | 0.0290 | 2 | 8 | 8.8 |
| MXP-A 120 | 475*280*235 | 0.0313 | 2 | 8.6 | 9.5 |
| MXP-A 224 | 520*170*390 | 0.0345 | 1 | 6 | 6.7 |
| MXP-A 232 | 520*170*460 | 0.0407 | 1 | 7.2 | 7.8 |
| MXP-A 240 | 520*170*530 | 0.0469 | 1 | 8.2 | 9 |
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
